Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TD40-01-C

MOQ : 200

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : 2P-24P

Pitch : 13.0mm

Rated Current : 40A

Rated Voltage : 600V

Type : Feed Through Terminal Block,Feed through terminal connectors,Electrical terminal Blocks

Wire Range : 8-22

Contact Now

Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin


■Single Deck; □Double decks; □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors

How to order:
Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

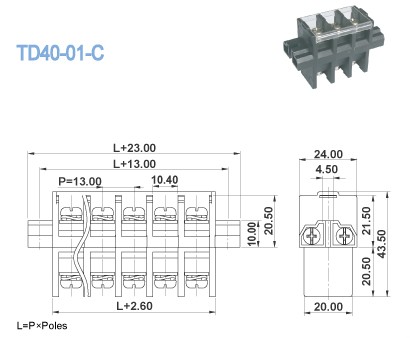

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 40

600 / 40

600 / 5

Wire Range AWG

8-22

8-22

8-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 40

1000 / 40

1000 / 40

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

8

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Nickel Plated

Other Data

Stripping Length mm

8-10

Screw / Torque / lbf.in

M5 / 16-18



Double Levels Panel Feed Through Terminal Block Black 2 Pin - 24 Pin



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
